Firefighting Truck Roll-up Doors for Emergency Truck /Rescue Truck/Vehicle

  • Firefighting Truck Roll-up Doors for Emergency Truck /Rescue Truck/Vehicle
  • Firefighting Truck Roll-up Doors for Emergency Truck /Rescue Truck/Vehicle
  • Firefighting Truck Roll-up Doors for Emergency Truck /Rescue Truck/Vehicle
  • Firefighting Truck Roll-up Doors for Emergency Truck /Rescue Truck/Vehicle
Model No.︰FX117
Brand Name︰FX
Country of Origin︰China
Unit Price︰US $ 70 / pc
Minimum Order︰1 pc
Share on:

 Total 33 Related Items
Prev1112131415Next

Product Description

Various vehicle Roll-up door
Firefighting Truck Doors for Emergency Rescue
Automatic fire truck roller shutter
Fire-extinguisher

Design Highlights and Specifications:
The charts below give approximate dimensions for roll up door diameters, compartment depths required, and maximum internal heights allowed for given door widths.
Recommended Header Height (inches) 2.5" is minimum required
Internal Height Minimum Depth Header Height Roll p Diameter
Up to 25 10.000 2.500 5.375
26 to 35 10.500 2.500 6.000
36 to 50 11.500 3.250 7.250
51 to 60 11.875 3.875 7.750
61 to 70 12.375 4.250 8.250
71 to 90 13.500 5.375 9.375
91 to 104 14.125 6.500 10.50

Roll Up Door Opening vs Maximum Internal Height (inches)
Door Opening Width Maximum Internal Height
18.000 30.000
19.000 40.000
20.000 56.000
21.000 60.000
22.000 to 27.000 90.000
28.000 to 32.000 100.000
33.000 to 78.000 110.000
Standard Features of Truck Body Fittings Roll Up Doors for fire trucks
Spring loaded operator for ease of lifting roll up door.

Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,
New Product ,
Competitive Prices ,
Earth-friendly Products ,
Small Order Acceptable.

Item Unit Parameter
Product name Fire truck roller shutter, fire fighting truck roll up door
Water tank volume L 2000
Overall dimensions mm 6260×1900×2750
Gross weight kg 6495
Curb weight 3065,3000
Payload capacity 3250,3315
Axle load 2620/3875
Wheelbase mm 3300
Front/Rear track base 1506/1466
Front/Rear overhang 1032/1488
Approach/Departure angle ° 17/13
Exhaust/Power ml/hp 3856/95
Max speed km/h 90
Emission standard Euro III
Engine model CY4102-C3F Electric system 24V
Traction system 4×2 Number of axles 2
Tire specifications 7.00-16 Number of tires 6
Operation control  system Electrically hydraulic control Allowable passengers in cab 2+3,3+3
Equipments and Performance 1. Water pump: CB10/20.
2. Fire cannon: PS20
3. PTO (Power Take Off)
4. 5-7 curtain doors equipment boxes
5. 1100mm long row lights
Production cycle 7-10 days
warranty 12 month, from the date of supply

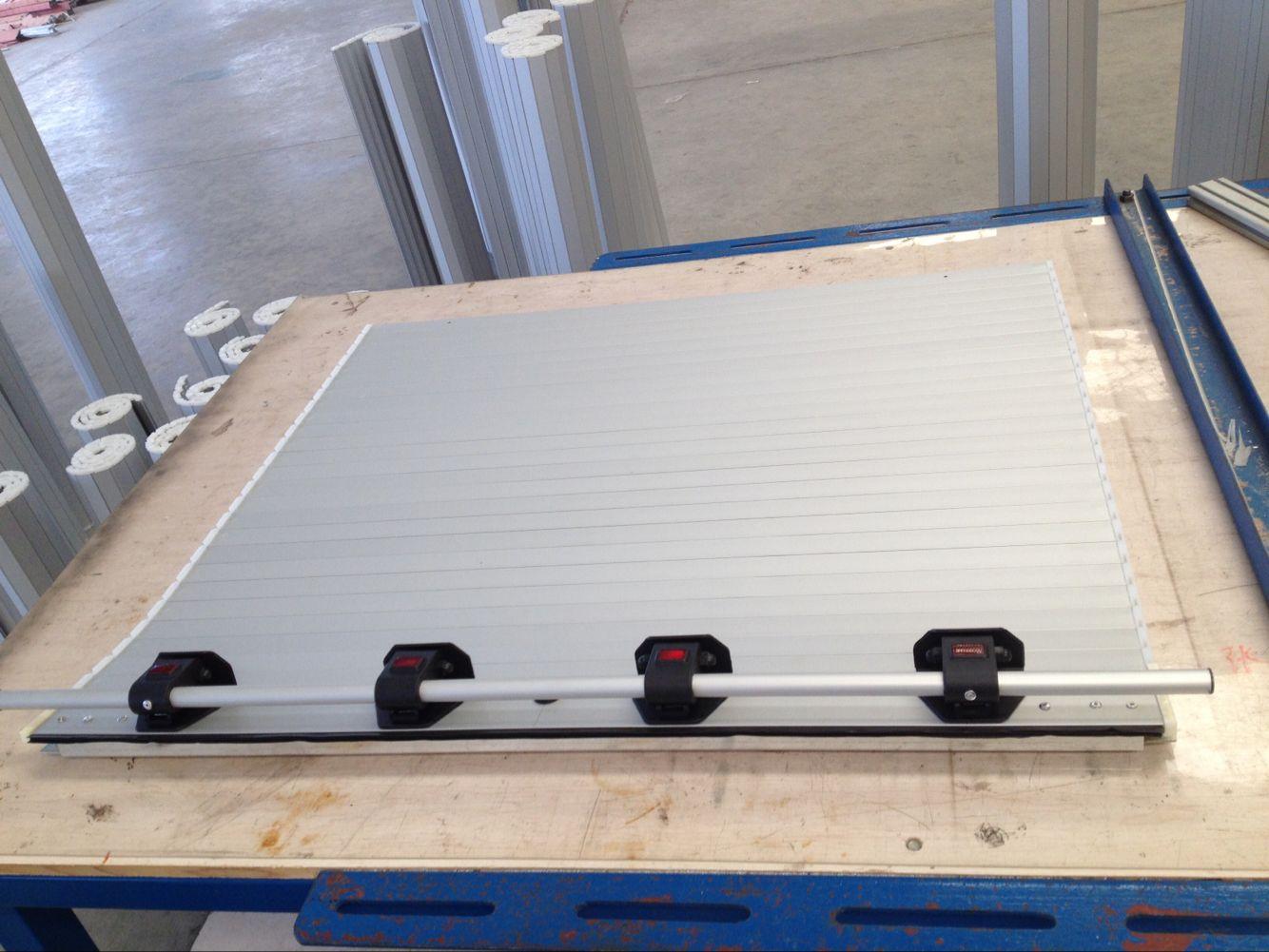

Product Fire-Fighting Truck Aluminum Roller Shutter/Roll up Door
Material Aluminum Alloy
Open style Rolling
Position Exterior
Dimension As request
Slat thickness 1.0mm
Color Silver
Origin China (Mainland)
Payment Terms︰TT, L/C, D/A,D/P
Product Image






7601101000
