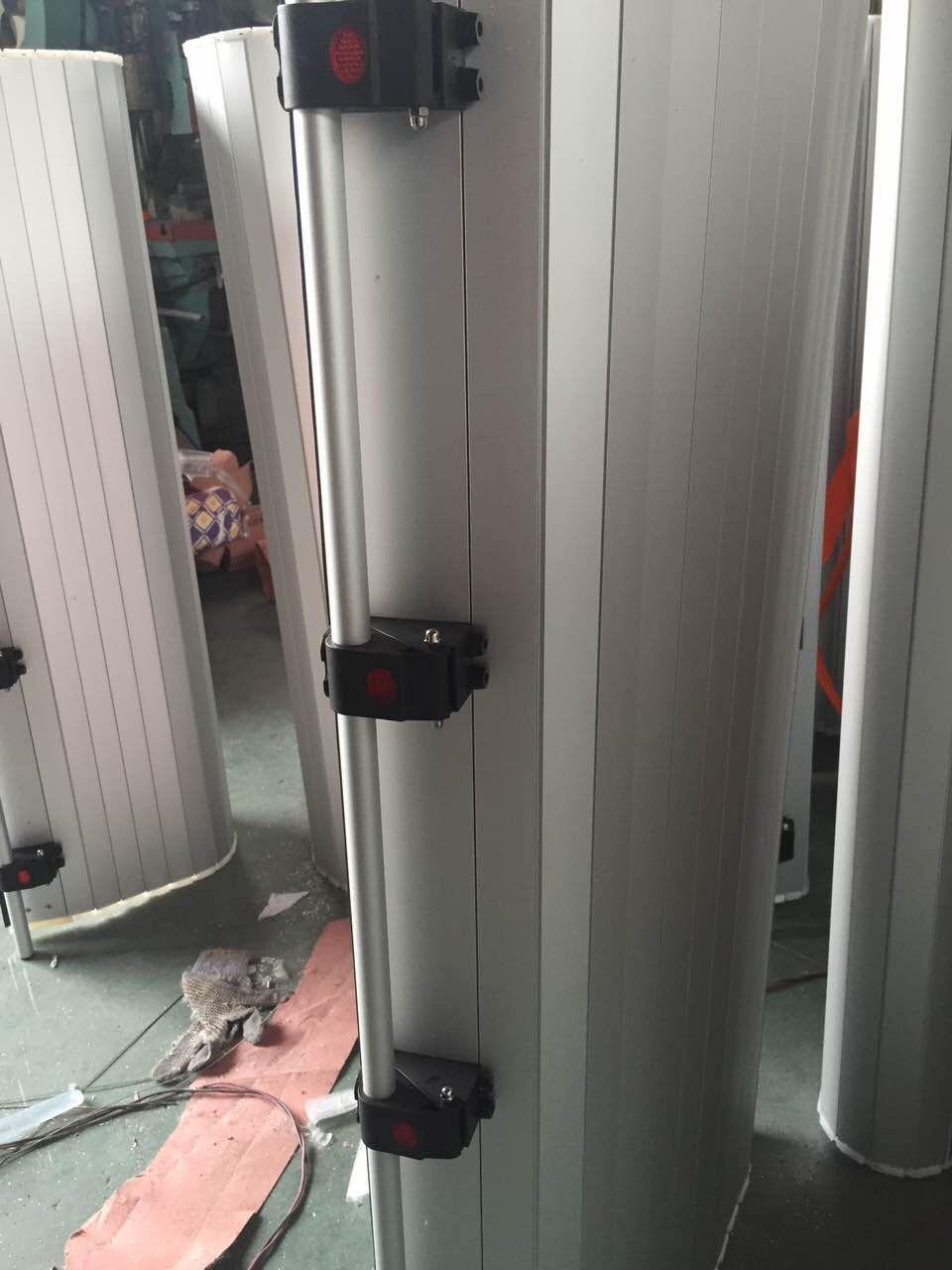

Fire Protection Aluminum Roll-up Door for Various Truck Vehicles

  • Fire Protection Aluminum Roll-up Door for Various Truck Vehicles
  • Fire Protection Aluminum Roll-up Door for Various Truck Vehicles
  • Fire Protection Aluminum Roll-up Door for Various Truck Vehicles
  • Fire Protection Aluminum Roll-up Door for Various Truck Vehicles
Model No.︰FX28
Brand Name︰FX
Country of Origin︰China
Unit Price︰US $ 70 / pc
Minimum Order︰1 pc
Share on:

 Total 33 Related Items
Prev1718192021Next

Product Description

Name:
Fire Protection Aluminum Roll-up Door for Various Truck, Roll Up Doors for fire trucks, Garage Door, Aluminum Door, Sliding Door, Steel Security Door, Rolling Door, Roller Shutter, Roller Door, Door


Product Fire-Fighting Truck Aluminum Roller Shutter/Roll up Door
Material Aluminum Alloy
Open style Rolling
Position Exterior
Dimension As request
Slat thickness 1.0mm
Color Silver
Origin China (Mainland)


FX Group, is a professional manufacturer of Fire Truck Roll up Door, Roller Shutters, Rolling Shutter Doors, Rolling Doors, Garage Door, Sliding Door, Metal Door, Aluminum Roller Shutter Door, drawers, ladders, LED Level Indicators and so on other parts

Advantages of Fire Truck Rolling up Door/Roller Shutter
Strong, lightweight anodized aluminum for an attractive appearance
Quick and easy installation
Fast and easy opening and closing
Provide full view of compartment
Easy access to equipment
Keeps personnel safe by allowing them to remain closer to the vehicle
Eliminates damage associated with swing-out doors
Available in custom painted finishes

Design Highlights and Specifications:
The charts below give approximate dimensions for roll up door diameters, compartment depths required, and maximum internal heights allowed for given door widths.
Recommended Header Height (inches) 2.5" is minimum required
Internal Height Minimum Depth Header Height Roll p Diameter
Up to 25 10.000 2.500 5.375
26 to 35 10.500 2.500 6.000
36 to 50 11.500 3.250 7.250
51 to 60 11.875 3.875 7.750
61 to 70 12.375 4.250 8.250
71 to 90 13.500 5.375 9.375
91 to 104 14.125 6.500 10.50

Roll Up Door Opening vs Maximum Internal Height (inches)
Door Opening Width Maximum Internal Height
18.000 30.000
19.000 40.000
20.000 56.000
21.000 60.000
22.000 to 27.000 90.000
28.000 to 32.000 100.000
33.000 to 78.000 110.000
Standard Features of Truck Body Fittings Roll Up Doors for fire trucks
Spring loaded operator for ease of lifting roll up door.

Competitive Advantages
Well and High Quality Control ,
Prompt Delivery ,
New Product ,
Competitive Prices ,
Earth-friendly Products ,
Small Order Acceptable.


CHASSIS
Germany Mercedes -Benz 3341 for firefighting purpose, engine power 410 hp,
high lift pump is speed adjustment, max. speed 104 KW/h.
MAIN TECHNICAL DATE
1) Dimension: length x width x heig     11600 x 2500 x 3950 (mm)
2) min. turning radius <12 m
3) proximal angle >25 degree
4) off angle >13 degree
5) Max. climbing capacity >25 %
6) full-loading mass 24500 kg
7) Max. speed 104 km/h
8) Span of the outriggers: transverse distance 5230 (mm)
                     Longitudinal distance 5250(mm)
9) Ladder working height: 40 m
10) Ladder elevating angle: - 12 - 75 degree
11) Swing range: 360 degree infinite rotation
12) Max. Working radius: 20 m
13) min. working radius: 7.5 m
14) opening time of stabilizer blade ,30 s
15) arm operating time: <90 s
16) Swing speed: 0-2r/min
17) Monitor flow: 30-80l/s
18) monitor reach:>70 m
Payment Terms︰TT, L/C, D/A,D/P
Product Image






76101000
